    900m3/H Cleanroom Air Filter 2 Interval V Bank Plastic Frame

    Ask Lasest Price
    Brand Name : GCC
    Model Number : AF-VB
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10000 sets/month
    Delivery Time : 7-14 workdays
    • Product Details
    • Company Profile

    900m3/H Cleanroom Air Filter 2 Interval V Bank Plastic Frame

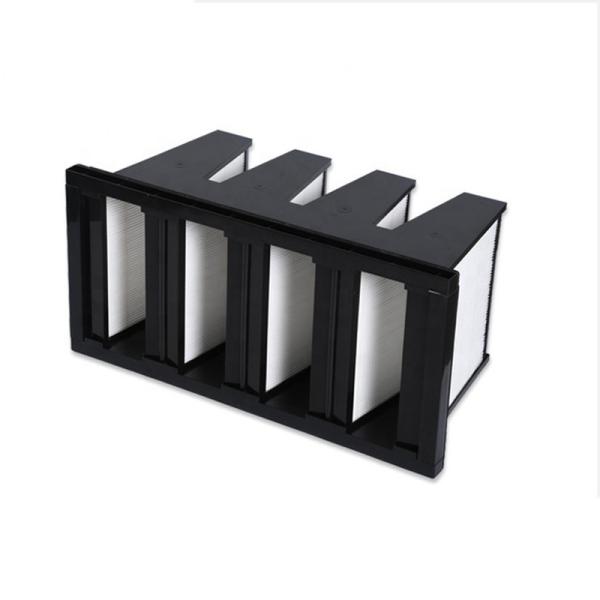

    V Bank Compact Filter With Plastic Frame

    V Bank Filte With Plastic Frame is mainly used for filtering 0.5 μ More than m dust particles, multi-V mini fold design, large filtering area, small resistance, long service life, waterproof superfine glass fiber filter material, polypropylene plastic frame can be completely burned, and flange frame can be interchanged with bag filter.

    900m3/H Cleanroom Air Filter 2 Interval V Bank Plastic Frame

    V Bank Compact Filter With Plastic Frame​ Features


    1. High efficiency,


    2. Low pressure drop,


    3. Large air flow,


    4. Large filter area,


    5. Long service life.


    Material

    Ultrafine Fiber Glass Paper With Aluminum Frame

    Dividers

    PP Melt Spray Fiber Or Ultrafine Glass Fiber Filter Paper

    Sealing Strip

    EVA, Neoprene

    Sealant

    PU Two-Component Polyurethane AB Adhesive

    Filtration Efficiency

    F6, F7, F8, F9

    Permissible max relative temperature

    70℃

    Permissible max relative humidity

    80%


    V Bank Compact Filter With Plastic Frame Parameters

    Size
    (mm)

    Interval

    Rated Air Rate
    (m³/h)

    Filter Area
    (㎡)

    Initial Resistance
    (Pa)

    Final Resistance
    (Pa)

    Efficiency

    287*287*292

    2

    900

    4.63

    ≤60

    250-300

    F6

    ≤80

    300-400

    F7

    ≤100

    300-400

    F8

    ≤120

    400-450

    F9

    592*592*292

    3

    2850

    15.03

    ≤60

    250-300

    F6

    ≤80

    300-400

    F7

    ≤100

    300-400

    F8

    ≤120

    400-450

    F9


    V Bank Compact Filter Applications


    1. Optical electronic,


    2. LCD,


    3. Biological medicine,


    4. Precision instruments film and optical fiber devices,


    5. PCB Printing industry such as dust-free purification.
