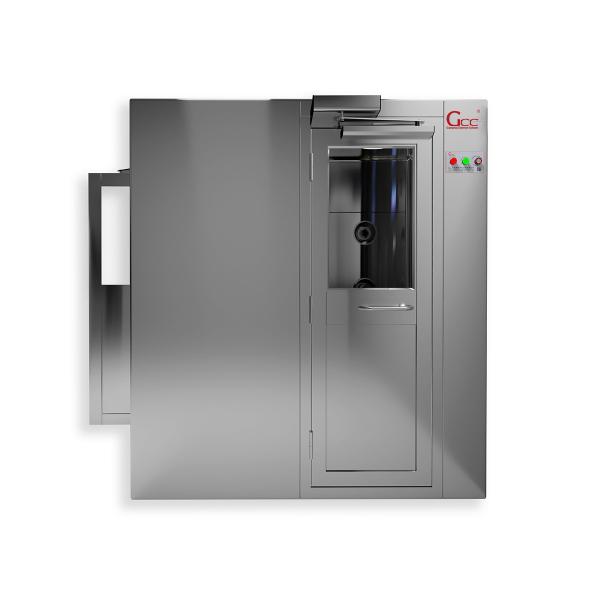

Cleanroom Air Shower Tunnel
Cleanroom air shower tunnel is mainly composed of cabinet, fans, filters, nozzle, electric
control system of five parts. Main body is made by 1.2mm cold plate
coating, stainless steel for the base.Cleanroom air shower tunnel
is mainly composed of cabinet, fans, filters, nozzle, electric
control system of five parts. Main body is made by 1.2mm cold plate
coating, stainless steel for the base.Cleanroom air shower tunnel
adopts photoelectric control, electric interlock, automatic blow.
Air shower time is adjustable, compact structure, easy to use.the
operator is maximum dust source in working space , Air shower room,
a purifying equipment being able to clean the dust adhering to the
surface of human body and articles, preventing the unclean air
invade into the clean room.To meet the cleanliness requirement of
clean room with the help of air-conditioning system in the clean
room. air shower room adopts photoelectric control, electric
interlock, automatic blow. Air shower time is adjustable, compact
structure, easy to use.the operator is maximum dust source in
working space , Air shower room, a purifying equipment being able
to clean the dust adhering to the surface of human body and
articles, preventing the unclean air invade into the clean room.
Features
1.Infrared induction automatic door system: the most different
between general air shower and automatic air show is that automatic
air shower cancelled manual door closer, achieved interlocking
system and infrared sensing automatic door opening system.
2.Intelligent control chip is widely used: automatic sound tips,
automatic control system, emergency stop system, these all systems
give user more safety and convenient.
3. High degree of automation: it avoids pollution from dirty air
and dust and develop our technology.
Specification
| Item | GCC-AS-1000 |
| Material | Stainless Steel |
| Internal Size | 790*860*1910mm |
| External Size | 1200*1000*2050mm |
| Efficiency | 99.99%@0.3μm,G3 |
| Voltage | 110V |
| Air Volume | 1200m³/h |
| Fan Rotate Speed | 2800R/min |
| Wind Speed | ≥25-30m/s |
| Showering Time | 0-99s( adjustable) |
Noise
(The noise was measured from a meter away) | ＜62dB |
| Remark | Can Be Customized |
Consumable parts illustrations
1. Pre-filter: each one should be replacement in each 6 month, but
it can refresh no more three times.
2. HEPA air filter: each one should be replacement in each half and
one years.
Service
1. Product quality control and delivery time is strictly
controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available; 5.Providing first-class
after-sales services to the customers.
Quality Control
a. Checking raw material before producing.
b. Checking one by one before the assembling
c. Checking one by one during the production
d. Have the random inspection before the delivery.
Warranty
Our equipment is warranty for 1 year excluding consumable parts and
accessories.
All equipment is shipped with a comprehensive use’s manual complete
with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Application Fields
Electronic, microelectronics, precision electronic, biological
manufacturing industry, the medical industry, food processing, ITO
mode, liquid crystal and conductive photoelectric suggests that the
industry, PCB, SMT manufacturing industry, aerospace, automobile
manufacturing industry, dust-free painting industry and other
industries.
