Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office

Guangzhou Cleanroom Construction Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office from wholesalers

    Buy cheap Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office from wholesalers
    • Buy cheap Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office from wholesalers
    • Buy cheap Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office from wholesalers
    • Buy cheap Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office from wholesalers
    • Buy cheap Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office from wholesalers

    Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office

    Ask Lasest Price
    Brand Name : GCC
    Model Number : FFUA
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 50000 Sets/Month
    Delivery Time : 7-14 Workdays
    • Product Details
    • Company Profile

    Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office

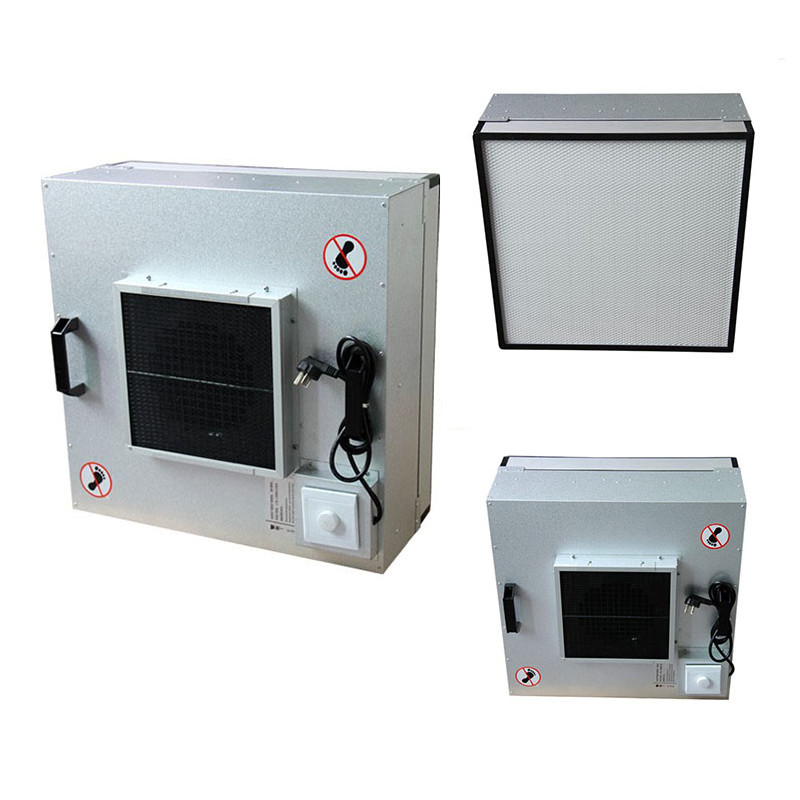

    Cleanroom Aluminum Fan Filter Unit

    Cleanroom Aluminum Fan Filter Unit is short for fan filter unit.it is a kind of air supply device which has motive power and filtering function.air is brought in top of FFU as passing through Hepa filters.filtered air comes out of outlet evenly,modules connection running.


    Cleanroom Aluminum Fan Filter Unit provides clean air and particle controlling.FFU is installed on ceiling of clean room(25% to 100% cover rate),general dimension is 2'*2'or 2'*4' or 4'*4' or the other custom size per our customer request

    Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office

    Features


    1. FFU shell and HEPA filter adopt split design,easy to install and replace,


    2. Microprocessor control system, energy-saving and low noise,


    3. Long service-life blower,up to 100,000 hours,maintenance-free and small vibration,


    4. Suitable for using separately or connecting together for assembly line,


    5. Made of aluminium coated zinc plate, anti-corrosion,rust-proof and light weight.


    Parameters


    ItemGCC-FFUA-1GCC-FFUA-2GCC-FFUA-3GCC-FFUA-4
    Size (WxLxH)575x875x275mm920x615x275mm575x1175x275mm615x1225x275mm
    Air Flow800~900m³/h800~900m³/h1100~1200m³/h1100~1200m³/h
    Air Velocity0.35~0.55m/s
    Total Pressure230Pa230Pa230Pa230Pa
    Power100W100W100W100W
    Weight25kgs27.5kgs34kgs37.5kgs
    Noise
    (1m below the HEPA filter)
    55~63dB
    Vibration0.2~0.7mm/s
    Control ModeManually Or Group Control Dy Computer
    Options

    DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

    Differential Pressure Drop Alarm Device

    HEPA FilterSize (WxHxD)570x870x69mm915x610x69mm570x1170x69mm610x1220x69mm
    Efficiency99.99% 0.3μm
    FrameHigh Quality Anodized Aluminum
    Initial Pressure Drop110Pa@0.45m/s±15%
    TraitPU Foam Endless Gasket

    Application


    Applying in class 10,000 to class 10 of clean room,even forming ultra-clean assembly line,clean work office,clean booth,clean closet and etc.....
