    Class 1000 Cleanroom Fan Filter Unit

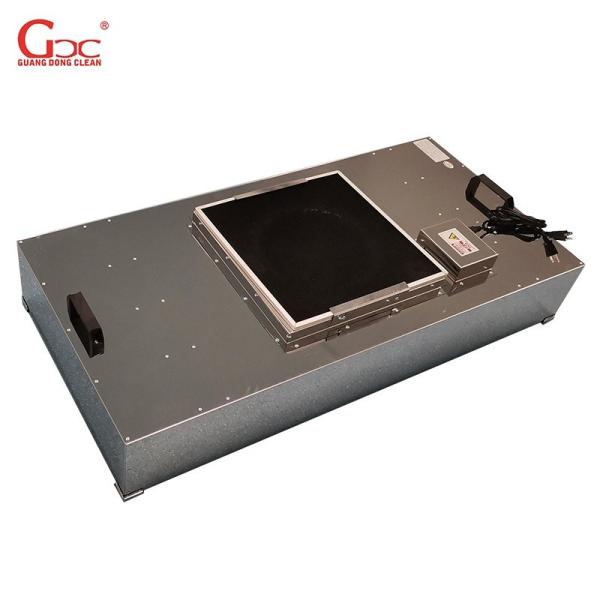

    Stainless Steel Fan Filter Unit

    Cleanroom stainless steel fan filter units (S/S FFU) is an air self-cleaning device that is equipped with both a primary and high-efficiency two-stage filter device. The air intake comes through the fan top, and is filtered through the two stage filter device. Clean air is then sent out through the outlet.


    The device can be installed indoors on the ceiling or mounted on a shelf. It can also be arranged in a single or multiple assembly lines, so that the purification level reaches class 100 according to different requirements. In addition, the FFU can also be used to supply air for the terminal in a clean room.


    Class 1000 Cleanroom Fan Filter Unit


    Features


    1. Space-saving


    2. High-performance configuration


    3. Energy-saving


    4. Remote control system


    5. Use in series


    Parameters


    Item

    GCC-FFUS-1

    GCC-FFUS-2

    GCC-FFUS-3

    GCC-FFUS-4

    Size (WxLxH)

    575x875x275mm

    920x615x275mm

    575x1175x275mm

    615x1225x275mm

    Air Flow

    800~900m³/h

    800~900m³/h

    1100~1200m³/h

    1100~1200m³/h

    Air Velocity

    0.35~0.55m/s

    Total Pressure

    230Pa

    230Pa

    230Pa

    230Pa

    Power

    100W

    100W

    100W

    100W

    Weight

    25kgs

    27.5kgs

    34kgs

    37.5kgs

    Noise
    (1m below the HEPA filter)

    55~63dB

    Vibration

    0.2~0.7mm/s

    Control Mode

    Manually Or Group Control Dy Computer

    Options

    DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

    Differential Pressure Drop Alarm Device

    HEPA Filter

    Size (WxHxD)

    570x870x69mm

    915x610x69mm

    570x1170x69mm

    610x1220x69mm

    Efficiency

    99.99% 0.3μm

    Frame

    High Quality Anodized Aluminum

    Initial Pressure Drop

    110Pa@0.45m/s±15%

    Trait

    PU Foam Endless Gasket


    Application


    Cleanroom stainless steel fan filter units (S/S FFU) are suitable for semiconductor, electronic, flat panel display and disk drive manufacturers and optical, bio-industry industries such as clean room, clean bench, clean production line, assembled clean room and local hundred and other occasions and Other places with strict control over air pollution require low energy consumption and lower operating costs.
