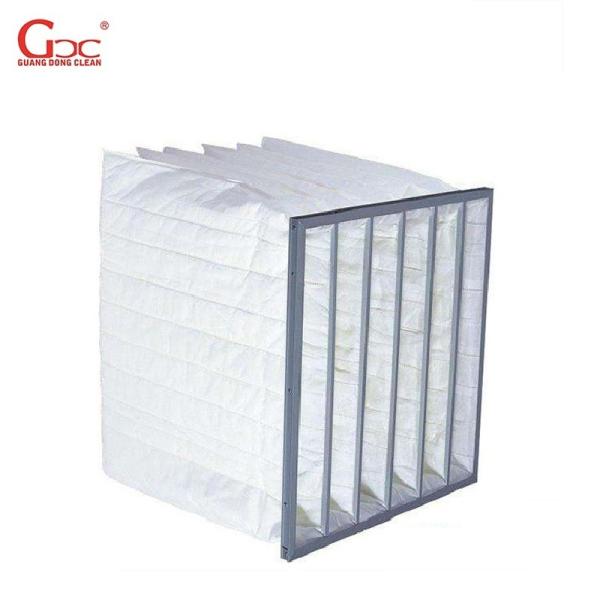

    3.18m2 Area F7 Medium Pocket Bag Filter High Permeability

    Ask Lasest Price
    Brand Name : GCC
    Model Number : MAF-SBS
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 100000 Pieces / Month
    Delivery Time : 7 Workdays
    • Product Details
    • Company Profile

    3.18m2 Area F7 Medium Pocket Bag Filter High Permeability


    The taper stitched pockets are self supporting to maintain stability and provide maximum use of the entire filtration area with minimal resistance to airflow under constant or variable air volume conditions.


    Product Characteristic


    1. It is woven specially with the superfine fibre,filter material content static electricity fibre.


    2. Dust size: 1 or is smaller than 1micron)


    3. High permeability


    4. Long working life.


    5. The large dust holding capacity, the high efficiency, the low damaged due to pressing;


    6. Temperature resistance up to 150℃


    The galvanization frame (the outer edge thickness: 20mm and 25mm are all available)
    The aluminum alloy frame (the outer edge thickness: 20mm and 25mm are all available)


    Product Material Composition And Operating Conditions


    MaterialFiberglass Paper With Aluminum Frame
    Filter Bag TypeSince The Bag Sewing
    Filtration EfficiencyF5,F6,F7,F8(EN779)
    Permissible Max Relative Temperature150℃
    Permissible Max Relative Humidity100%

    Product Parameters


    Size

    (mm)

    Number of Bags

    Air Volume

    (m³/h)

    Filter Area

    (㎡)

    Initial Resistance

    (Pa)

    Initial Resistance

    (Pa)

    Efficiency
    287*592*381310001.58<50250-300F5
    <65250-300F6
    <80300-400F7
    <100300-400F8
    490*592*381517002.65<50250-300F5
    <65250-300F6
    <80300-400F7
    <100300-400F8
    592*592*381620503.18<50250-300F5
    <65250-300F6
    <80300-400F7
    <100300-400F8

    Product Applications


    a. Suitable for the filtration of paint, viscose, resin dyes, ink and oil products, chemicals and other industries.


    b. Intermediate filtration of centralized ventilation and air conditioning system in cleanroom.
