    250m3/H 400degree H14 High Temperature Hepa Filter With Baffle Plate

    Ask Lasest Price
    Brand Name : GCC
    Model Number : AF-HTR
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Pieces / Month
    Delivery Time : 7-14 Workdays
    • Product Details
    • Company Profile

    250m3/H 400degree H14 High Temperature Hepa Filter With Baffle Plate

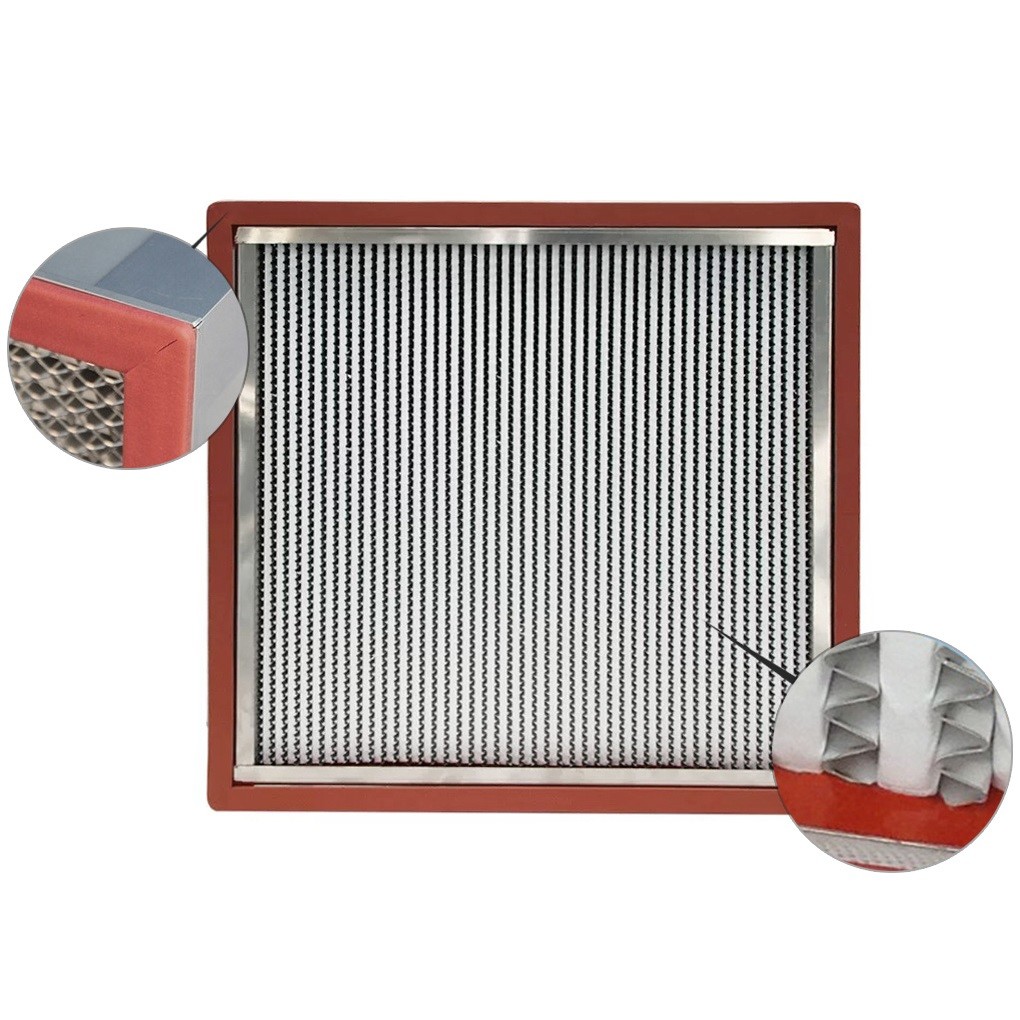

    400℃ High Temperature Resistance Hepa Air Filter Box With Baffle Plate

    High temperature HEPA filter with baffle plate is an air filter that can can allow to work at 400°C . It uses the stainless steel frame and high quality glass fiber filter paper. It's widely used for the ultra clean oven in food, medicine factories, auto plant painting spray system or spraying industry, oven, chemical, ultrasonic industry and other high temperature purification sites.

    250m3/H 400degree H14 High Temperature Hepa Filter With Baffle Plate

    Features


    1. With partition design, high efficiency, low resistance and large dust holding capacity,

    2. High Temperature Resistance, can used under 400℃,


    3. Suitable for variable air volume systems.


    Material Composition And Operating Conditions


    Material

    Glass Fiber With Stainless Steel Frame

    Filtration Efficiency

    H13,H14

    Permissible max relative temperature

    400℃

    Permissible max relative humidity

    80%


    Parameters


    Size

    Rated Air Rate

    Filter Area

    Initial Resistance

    Final Resistance

    Efficiency

    320*320*150mm

    250m³/h

    2.59

    ≤200Pa

    400-600Pa

    H13

    320*320*220mm

    500m³/h

    4.08

    H14

    484*484*150mm

    600m³/h

    6.00

    H13

    484*484*220mm

    1000m³/h

    9.46

    H14

    610*610*150mm

    1000m³/h

    9.59

    H13

    915*610*150mm

    1500m³/h

    14.38

    H14

    1220*610*150mm

    2000m³/h

    19.17

    H13


    Applications Area


    High temperature resistance hepa air filter box with baffle plate widely use for pharmacy, food, semiconductor, LCD and IC industry where production processes need ultra- clean oven cabinet or high temperature clean purification equipment and system.
