Prefab Pharmaceutical Cleanroom
We specialize in class 10 to class 100,000 (ISO 4 – ISO 8) Easily
Moved PVC HEPA electronics industry prefab cleanroom that are used
for some of the following activities: pharmaceutical production
cleanrooms, medical production cleanroom, pharmaceutical storage
rooms, temperature controlled rooms, bio-safety laboratories,
pharmaceutical research laboratories, stem cell research
laboratories, server control rooms, organic chemistry laboratories,
laser rooms, microbiology laboratories, dry rooms and more.

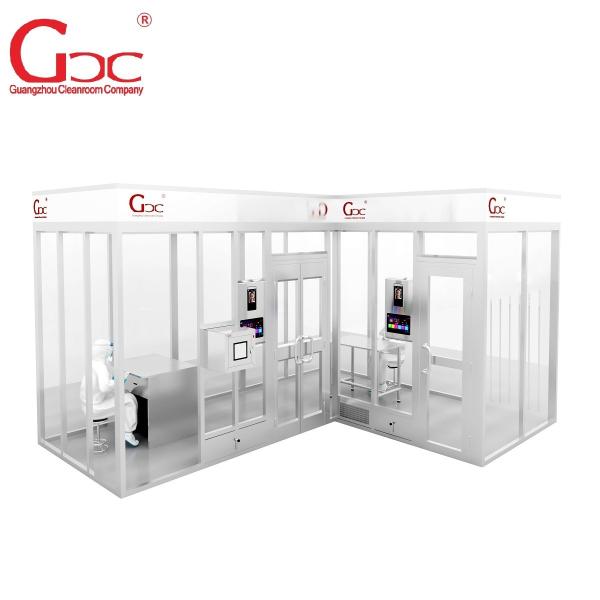

The ISO 5 anti-static soft PVC wall air purifying prefab cleanroom
for pharmaceutical belong to a new fashion product, its suitable
for high cleanliness part area working, can make the working
environment reach to a high cleanliness but no need change all room
to cleanroom, not only save the cost, but also saving time to make
it, usually cleanbooth production time arround 15-20days, and easy
to install it.
Prefab cleanroom also have easy move, light weight, material choose
fixing ...etc advatage. more and more customer choose this
equipment to replace standard cleanroom project.
Product Advantages
a. Compared to the traditional civil style clean room, the cost is
greatly reduced,
b. Supply clean vertical airflow, maintaining the clean class level
of indoor,
c. Just take a few hours to install, and easy disassemble.
Level Of Airborne Particulate Cleanliness In Prefab Cleanroom
| FED STD 209E |
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=5um | Equivalent |
| 1 | 35 | 7 | 3 | 1 | | ISO3 |
| 10 | 350 | 75 | 30 | 10 | | ISO4 |
| 100 | | | | 100 | | ISO5 |
| 1000 | | | | 1000 | 7 | ISO6 |
| 10000 | | | | 10000 | 70 | ISO7 |
| 100000 | | | | 100000 | 700 | ISO8 |
| ISO 14644-1 Cleanroom Standards |
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=1um | >=5um | Equivalent |
| ISO1 | 10 | 2 | | | | | |
| ISO2 | 100 | 24 | 10 | 4 | | | |
| ISO3 | 1000 | 237 | 102 | 35 | 8 | | 1 |
| ISO4 | 10000 | 2370 | 1020 | 352 | 83 | | 10 |
| ISO5 | 100000 | 23700 | 10200 | 3520 | 832 | 29 | 100 |
| ISO6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | 1000 |
| ISO7 | | | | 352000 | 83200 | 2930 | 10000 |
| ISO8 | | | | 3520000 | 832000 | 29300 | 100000 |
| ISO9 | | | | 35200000 | 8320000 | 293000 | Room Air |
If you provide below information when you contact us, will help you
get a faster solution
1. What industry do you need the cleanbooth ?
2. What size and height and cleanliness do you need for cleanbooth
?
3. What kind of work will be do in p cleanroom ?
4. Are there any requirements for cleanbooth ?
5. What kind of material for wall you want ?
