Easy Moveable All Steel Frame ISO9 Modular Clean Room

Guangzhou Cleanroom Construction Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Easy Moveable All Steel Frame ISO9 Modular Clean Room from wholesalers

    Buy cheap Easy Moveable All Steel Frame ISO9 Modular Clean Room from wholesalers
    • Buy cheap Easy Moveable All Steel Frame ISO9 Modular Clean Room from wholesalers

    Easy Moveable All Steel Frame ISO9 Modular Clean Room

    Ask Lasest Price
    Brand Name : GCC
    Model Number : ASA
    Certification : CE,ISO
    Payment Terms : T/T, L/C
    Delivery Time : 5-8 workdays
    Price : Negotiation
    Supply Ability : 50000 Sets/Month
    • Product Details
    • Company Profile

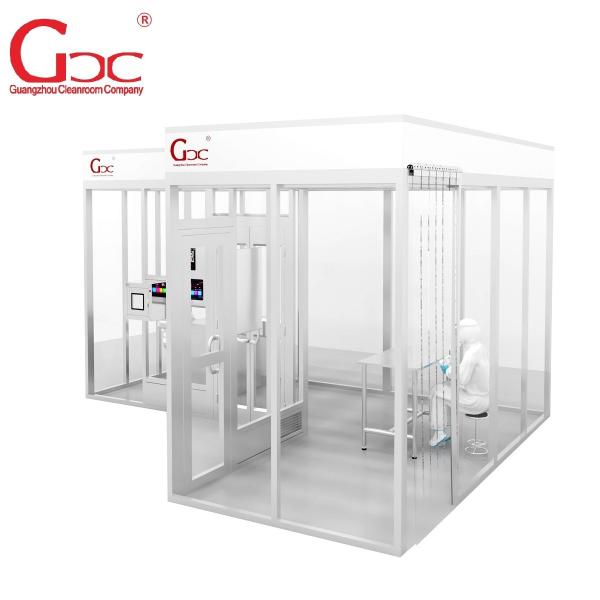

    Easy Moveable All Steel Frame ISO9 Modular Clean Room

    Simple Structure Easy Moveable Clean Shed clean Booth For Modular Clean Room

    Modular clean booth is a simple modular clean room. it is using elasticity, easy to install, short construction period and portability. Soft wall Cleanroom (Clean booth) allows you to build an economical cleanroom (clean booth) in nearly any office or production space in just a few days.


    All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan / filter units to meet cleanliness requirements from ISO 5 – 8(clean booth). Clean booth Shields are made of static-dissipative PVC or Acrylic Sheet to control electro-static discharge.

    Features

    Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.

    Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.

    Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change into dust-free production.

    Flexibility: Less limitation or low requirements for the floor and spot situation, the iner space is enough to use and the frame can be recycled.

    Level Of Airborne Particulate Cleanliness In Prefab Cleanroom


    FED STD 209E
    Level>=0.1um>=0.2um>=0.3um>=0.5um>=5umEquivalent
    135731ISO3
    10350753010ISO4
    100100ISO5
    100010007ISO6
    100001000070ISO7
    100000100000700ISO8

    ISO 14644-1 Cleanroom Standards
    Level>=0.1um>=0.2um>=0.3um>=0.5um>=1um>=5umEquivalent
    ISO1102
    ISO210024104
    ISO310002371023581
    ISO410000237010203528310
    ISO51000002370010200352083229100
    ISO610000002370001020003520083202931000
    ISO735200083200293010000
    ISO8352000083200029300100000
    ISO9352000008320000293000Room Air

    Following options are available


    1. Pass box

    2. Air shower

    3. ULPA filter

    4. Sticky mats

    5. Barometer

    6. Gowning area

    7. Pressure different control device

    8. Transparent/grid PVC curtain

    9. Thermo-static and humid-static air conditioning system.
