    Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit

    Ask Lasest Price
    Brand Name : GCC
    Model Number : FFUT
    Payment Terms : T/T, L/C
    Supply Ability : 50000 Sets/Months
    Delivery Time : 7-14 Workdays
    • Product Details
    • Company Profile

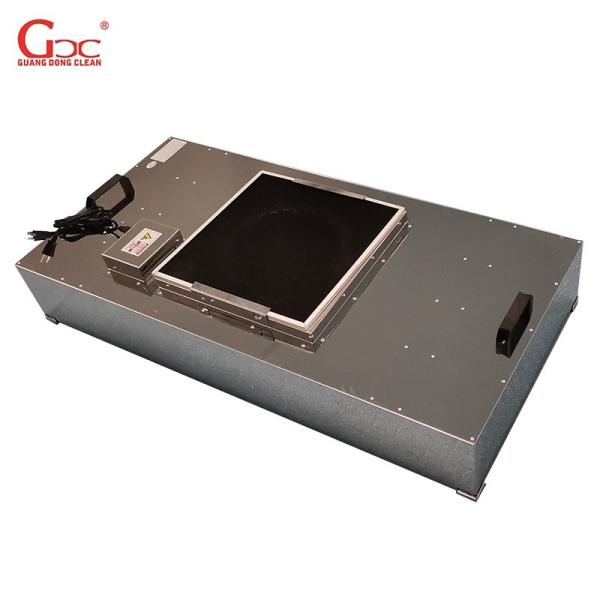

    Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit


    A cleanroom fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.


    Features


    1. Overheating protection

    2. The average air speed increase to 25%

    3. Life-long span

    4. Space-saving


    Parameters


    ItemGCC-FFUT-1GCC-FFUT-2GCC-FFUT-3GCC-FFUT-4
    Size (WxLxHmm)575x875x275920x615x275575x1175x275615x1225x275
    Air Flow (m³/h)800~900800~9001100~12001100~1200
    Air Velocity (m/s)0.35~0.55
    Total Pressure (Pa)230230230230
    Power (W)100100100100
    Weight (kg)2527.53437.5
    Noise dB
    (1m below the HEPA filter)
    55~63
    Vibration (mm/s)0.2~0.7
    Control ModeManually Or Group Control Dy Computer
    Options

    DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

    Differential Pressure Drop Alarm Device

    HEPA FilterSize (WxHxDmm)570x870x69915x610x69570x1170x69610x1220x69
    Efficiency99.99% 0.3μm
    FrameHigh Quality Anodized Aluminum
    Initial Pressure Drop110Pa@0.45m/s±15%
    TraitPU Foam Endless Gasket

    Application


    Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room , or any other places.
