Brand Name : | GCC |
Model Number : | NFS90-351 – DIN 1946 |
Certification : | CE |
Price : | Negotiation |
Payment Terms : | T/T, L/C |
Supply Ability : | 1000 Sets/Month |
Delivery Time : | 7-14 Workdays |

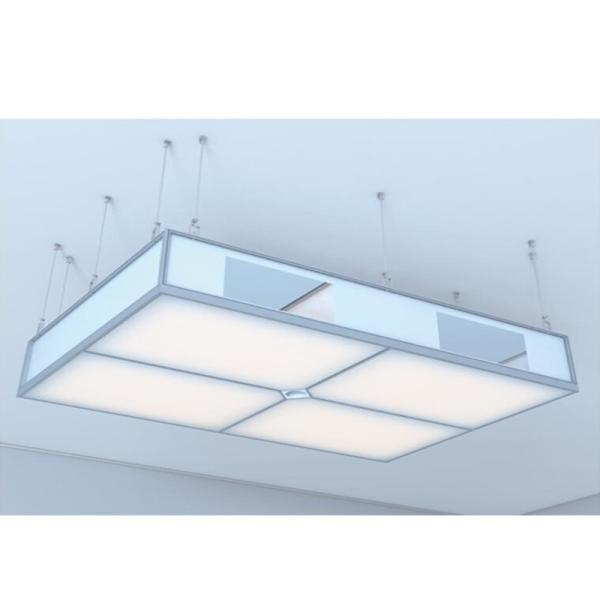

The laminar flow ceiling is a dust-free aseptic purification equipment with high cleanliness. It can even create a class100 cleanliness work area environment, it is used at the ceiling of Operating room to offer the uniform air flow and clean class for some areas like for the class I clean operating room, class II clean operating room, class III clean operating room.
Features about the Laminar Flow Ceiling
1. It can be used alone or several together.
2. A good sealing performance with professional filter and box connection.
3. The overall wind with uniform speed.
4. Low noise, smooth operation, easy to maintain and replace, cost effective.
Parameter
Item | GCC-LFC-II | GCC-LFC-I |
Size | 2600*1800*500mm | 2600*2400*500mm |
Hepa Filter Quantity | 6Pcs | 8Pcs |
Filtration Efficiency | H13@99.95% | H13@99.95% |
Outlet Wind Speed | 0.3-0.45m/s | 0.3-0.45m/s |
Use Occasions | Class II Special Clean Room | Class I Special Clean Room |
Applications
It is mainly used in the hospital operating room to meet the requirements of different operating levels.
![]() |
